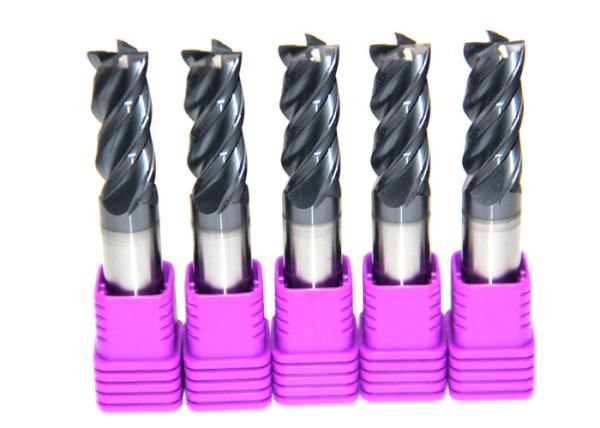

    Custom CNC End Mill BIts For Stainless Steel Drill Press 10mm 20mm 30mm 40mm

    Ask Lasest Price
    Model Number : S600
    Brand Name : KTC
    Certification : CCC
    Price : Negotiation
    Delivery Time : 1-35days
    Payment Terms : T/T, L/C,Paypal...
    Supply Ability : 10000pcs/week
    • Product Details
    • Company Profile

    Custom CNC End Mill BIts For Stainless Steel Drill Press 10mm 20mm 30mm 40mm

    Custom CNC End Mill BIts For Stainless Steel Drill Press 10mm 20mm 30mm 40mm


    Description:


    S600 series end mills for stainless steel / titanium alloy or other materials, adopt imported high-quality Fine grain tungsten steel material, with bending strength of 4300mpa and grain size of 0.4μm. It is coated with imported composite coating specially for stainless steel. It is suitable for large feed machining and improves Processing efficiency. With high precision quality control, and full inspection, all our S600 series are delivered with 100% qualification rate, suitable for various grades of stainless steel (308,316,316L) and high temperature alloy (nickel, titanium) and other intractable materials.


    Raw MaterialGU25UF
    WC88%
    Co12%
    TRS>4300N/mm2
    Hardness>92HRA
    Cutting diameter1-20mm
    A.O.L50-150mm
    Grain size0.4μm
    Helix angle35°
    Upto<HRC65
    Flutes No4F
    CoatingYes
    Suitable forSteel,stainless steel,nickel alloy,Titanium alloy,cast iron,plastic and other materials

    Standard Sizes

    SizeFlute Length of End Mills(mm)
    Flat endBall NoseRound nose
    D1*D4*50323
    D1.5*D4*50434
    D2*D4*50545
    D2.5*D4*50656
    D3*D4*50868
    D3*D3*50868
    D3.5*D4*50979
    D4*D4*5010810
    D1*D6*50323
    D1.5*D6*50434
    D2*D6*50545
    D2.5*D6*50656
    D3*D6*50868
    D3.5*D6*50979
    D4*D6*5010810
    D6*D6*50131013
    D6*D6*50151215
    D7*D8*60171417
    D8*D8*60201620
    D10*75252025
    D12*75302430
    D14*100452835
    D16*100453240
    D18*100453640
    D20*100454040

    Flute Length of Extended End Mills(mm)


    D3*D4*7512612
    D4*D4*7516814
    D5*D6*75181015
    D6*D6*75241220
    D8*75251625
    D3*D4*10012615
    D4*D4*10020815
    D5*D6*100201020
    D6*D6*100301225
    D8*D8*100351630
    D10*100402030
    D12*100452435
    D6*D6*150451240
    D8*D8*150501645
    D10*150552050
    D12*150552455
    D14*150602860
    D16*150703265
    D18*150703670
    D20*150704070

    Here’s a good rule of thumb – the harder the material, the more flutes you’ll want to use. This will reduce chip load and improve surface finish. Keep these considerations in mind when choosing between the most common flutes – two, three, and four:
