Black or Copper Center Cutting End Mill / 2 Flutes Milling End Mill
Cutter
Tungsten Carbide Center Cutting End Mill Cutting Tools for Lathe
Machine
1. Our advantages:
1. Solid carbide lasting long life in hardened steels, Grain size
carbide, high toughness, high -wearing feature.
2. Reduce the rudding coefficient & save the processing time,
Specializing in high speed cutting of CNC milling machine.
3. Wide range of application: Suitable for copper, castiron, carbon
steel, stainlees steel, Non-ferrous material and Heat-treated steel
processing.
4. The shank and helix angle can be customized according to
customers' requirements.
Specifications:

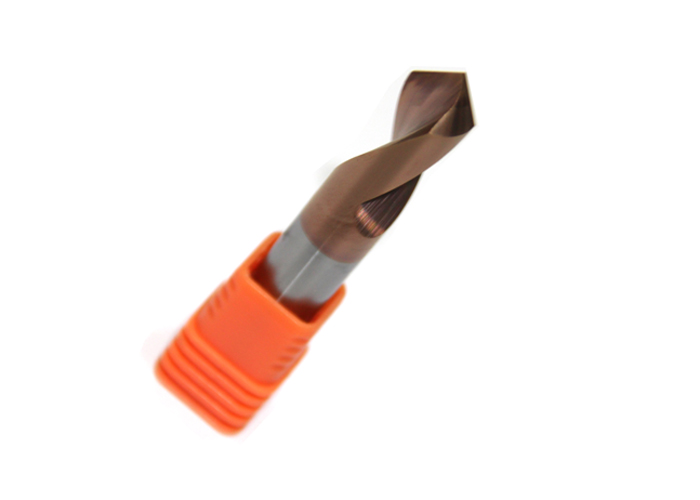

D600 centering chamfer cutter series adopt domestic high-quality
fine grain tungsten steel material, flexural strength: 4100mpa,
grain size: 0.8μm. There are two categories for aluminum and steel
respectively. The centering chamfer cutter for steel is coated by
imported coating equipment (black / Bronze), especially suitable
for aluminum, copper, ordinary medium and low carbon steel, alloy
steel and other materials processing. With high precision quality
control, and full inspection, all D600 series end mills are
delivered with 100% qualification rate.
| Raw Material | YL10.2 /K30 |
| WC | 90% |
| Co | 10% |
| TRS | >4100N/mm2 |
| Hardness | >92HRA |
| A.O.L | 50mm-100mm |
| Grain size | 0.8 μm |
| Upto | HRC55 |
| Flutes No | 2F |
| Coating | AlTiN or TiSiN |
| Suitable for | Steel,stainless steel,nickel alloy,Titanium alloy,cast iron,plastic
and other materials |
Coating:
| Item | AlTiN | TiSiN |
| Hardness(HV): | 3200 | 3600 |
| Thickness(μm): | 2.5-3 | 3 |
| Oxidation Temp(°): | 900 | 1000 |
| frictional Coefficient: | 0.3 | 0.45 |
| Color: | Black | Copper |
Standard Sizes
| Size | Flute Length(mm) | the Degrees of Angle |
| D4*50 | 8 | 60° 90° 120° |
| D4*100 | 8 | 60° 90° 120° |
| D6*50 | 12 | 60° 90° 120° |
| D6*100 | 12 | 60° 90° 120° |
| D8*60 | 16 | 60° 90° 120° |
| D8*100 | 16 | 60° 90° 120° |
| D10*75 | 20 | 60° 90° 120° |
| D10*100 | 20 | 60° 90° 120° |
| D12*75 | 24 | 60° 90° 120° |
| D12*100 | 24 | 60° 90° 120° |
| D16*100 | 32 | 60° 90° 120° |
| D20*100 | 40 | 60° 90° 120° |
Quality has never been more important than today. We continually
invest in the latest technology and equipment in keeping with our
pledge for quality excellence.
Only the best micro grain carbide available is used in building our
tools. We offer a full line of tools, as well as custom
manufactured tools in Solid Carbide/HSS Cobalt 8%, End
Mills,Reamers, Step Drills and Form Tools are just a few of the
types of tools that we will custom manufacture and coat to your
specifications. We work together with you to make the exact cutting
tool you are looking for.
Product Description:
1, Chemical Composition: 10%Co-Wc
2, Raw Material:Super Micro grain with Diameter less than 0.2UM
3, International Industrial Standard: K10, K05-K15, K20-K30,
K20-K40
4, Technology and Processing Equipment:
Processing Equipment
1) grinding machine imported from Germany.
2)ANCA grinding machine imported from Australia.
Technology
incorporate latest molding, coating, edge preparation,and other
manufacturing technology. Provide superior performance.
Coatings provide high-speed capability and are engineered from
finishing to heavy roughing,The post-coat treatment reduces coating
stresses, improves coating adhesion, minimises microchipping and
edge build-up, and improves workpiece finish.Coated surface enable
to get Longer tools life:
Application areas: Machining of cast iron, nonferrous alloy, chill
cast iron, hard steel, stainless steel, plastic materials,
fiberglass, carbon fiber and other non-metallic.
Served industries: Aerospace,Transportation,Medical
Equipment,Military Manufacturing,Mold Development,etc.
