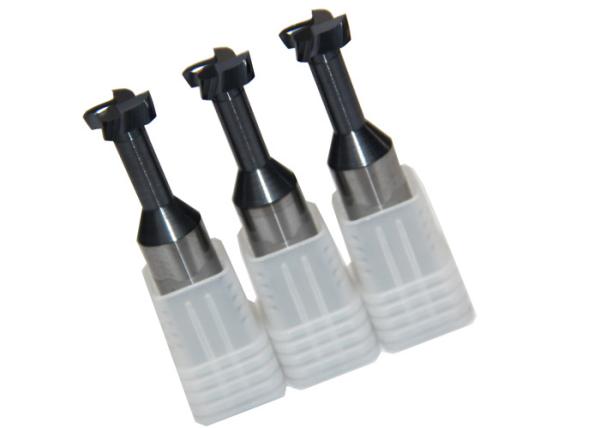

1 Inch T Slot End Mill / Solid Carbide End Mill Cutter High
Hardness
Groove or slot milling
Groove or slot milling is an operation in which side and face
milling is often preferred to end milling.
Slots or grooves can be short or long, closed or open, straight or
non-straight, deep or shallow, wide or narrow
Tool selection is normally determined by the width and depth of the
groove and, to some extent, length
Available machine type and frequency of operation determine whether
an end mill, long-edge cutter or side and face milling cutter
should be used
Side and face cutters offer the most efficient method for milling
large volumes of long, deep grooves, particularly when horizontal
milling machines are used. The growth in vertical milling machines
and machining centers, however, means that end mills and long-edge
cutters are also frequently used in a variety of groove milling
operations
Specifications
T600 T-Slot milling cutter series adopt domestic high-quality fine
grain tungsten steel material, flexural strength: 4100mpa, particle
size: 0.8 μm. There are two categories for aluminum and steel
respectively. T-Slot milling cutter for steel is coated by imported
coating equipment (black / copper), specially suitable for
aluminum, copper, ordinary medium and low carbon steel, alloy steel
and other materials processing. With high precision quality
control, and full inspection, all T600series end mills are
delivered with 100% qualification rate.
| Material | YL10.2 / K30 |
| WC | 90% |
| Co | 10% |
| TRS | >4100N/mm2 |
| Hardness | >92HRA |
| Cutting diameter | 1-20mm |
| A.O.L | 50-100mm |
| Grain size | 0.8 μm |
| Helix angle | 30° |
| Upto | HRC60 |
| Flutes No | 4 Flutes |
| Coating | AlTiN or TiSiN |
| Suitable for | Steel,stainless steel,nickel alloy,Titanium alloy,cast iron,plastic
and other materials |
Coating:
| Item | AlTiN | TiSiN |
| Hardness(HV) | 3200 | 3600 |
| Thickness(μm) | 2.5-3 | 3 |
| Oxidation temp(°) | 900 | 1000 |
| Friction coeffient | 0.3 | 0.45 |
| Color | Black | Copper |
Standard Sizes
| Name | Size | Slot Thickness |
| T-Slot End Mills/Milling cutters | φ3*φ4*50-4T | 0.5/1/1.5/2 |
| φ4*50-4T | 0.5/1/1.5/2 |
| φ6*50-4T | 0.5/1/1.5/2/2.5/3 |
| φ8*50-4T | 0.5/1/1.5/2/2.5/3 |
| φ10*60-4T | 1/1.5/2/2.5/3/4/5 |
| φ12*60-4T | 1/1.5/2/2.5/3/4/5 |
FAQ
Q: When can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If
you are very urgent to get the price, please call us or tell us in
your email so that we will regard your inquiry priority.
Q: How can I get a sample to check your quality?
A:After price confirmation, you can require for samples to check
our quality.
Q: What about the transportation and delivery date?
A:Normally we send the goods via air express or as your request.
Q: Are you trading company or manufacturer?
A: We are professional manufacturer, have near 20 years experience
in this field.
Q: How about your stock?
A:We have large quantity products in stock, regular types and sizes
are all in stock.
Q: Is free shipping possible?
A: We don't offer free shipping service, but we will give you some
discount if you buy large quantity products.
Q: Can you produce Special carbide Tools ?
A: Yes We can.
