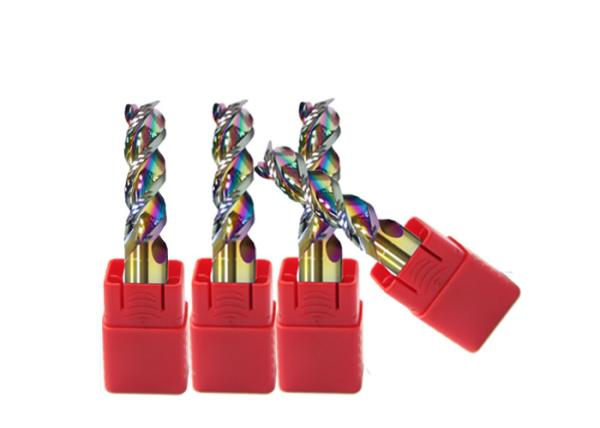

    3 Flutes Aluminum End Mills Spiral Shape Size Custom A380TC Coating

    Ask Lasest Price
    Model Number : A380TC
    Brand Name : KTC
    Certification : CCC
    Price : Negotiation
    Delivery Time : 1-35days
    Payment Terms : T/T, L/C,Paypal...
    Supply Ability : 10000pcs/week
    • Product Details
    • Company Profile

    3 Flutes Aluminum End Mills Spiral Shape Size Custom A380TC Coating

    3 Flutes Aluminum End Mills Spiral Shape Size Custom A380TC Coating


    The main features of these solid carbide end mills for aluminium include:
    Innovative new geometries designed in conjunction with our international development partners who have decades of design and development experience in the carbide tooling industry. The benefit is a range of state-of-the-art carbide cutting tools with superior performance.
    Optimal flute geometry delivers maximum metal removal rates and better chip evacuation.
    Effective in a full range of machine speeds, from 3 000 to 20 000 RPM’s and more.
    Only one tool is needed for use in roughing and finishing operations.
    Can take deeper and wider cuts – axial and radial. Slotting is effective up to full 1xD axial depth.

    Specifications:
    A380TC high gloss aluminum milling cutter series adopt domestic high-quality fine grain tungsten steel material, flexural strength: 4100mpa, grain size: 0.6 μm, not easy to break the edge. A new special aluminum milling cutter with color coating is introduced, which increases the wear resistance of the cutter. The unique groove design and the polishing treatment of the front cutting edge and groove are adopted to increase the cutting performance. It is especially suitable for efficient and high gloss machining of aluminum alloy (6 and 7 series aluminum) materials. With high precision quality control, and full inspection, all A380TC series end mills are delivered with 100% qualification rate.
    Raw MaterialK40 & WF25
    TRS>4100N/mm2
    Hardness>91HRA
    A.O.L50mm-150mm
    Grain size0.6 μm
    UptoHRC50
    Flutes No3F
    CoatingTC100
    Suitable forAluminum,plastic and other materials


    Standard Sizes

    SizeFlute Length of End Mills(mm)
    Aluminum Use
    D1*D4*503
    D1.5*D4*505
    D2*D4*506
    D2.5*D4*508
    D3*D4*509
    D3*D3*509
    D3.5*D4*5011
    D4*D4*5012
    D1*D6*503
    D1.5*D6*505
    D2*D6*506
    D2.5*D6*508
    D3*D6*509
    D3.5*D6*5011
    D4*D6*5012
    D6*D6*5015
    D6*D6*5018
    D7*D8*6020
    D8*D8*6024
    D10*7530
    D12*7535
    D14*10045
    D16*10045
    D18*10045
    D20*10045

    Flute Length of Extended End Mills(mm)


    D3*D4*7512
    D4*D4*7516
    D5*D6*7518
    D6*D6*7525
    D8*7530
    D3*D4*10015
    D4*D4*10020
    D5*D6*10030
    D6*D6*10030
    D8*D8*10035
    D10*10040
    D12*10045
    D6*D6*15040
    D8*D8*15050
    D10*15055
    D12*15055
    D14*15060
    D16*15070
    D18*15070
    D20*15070
