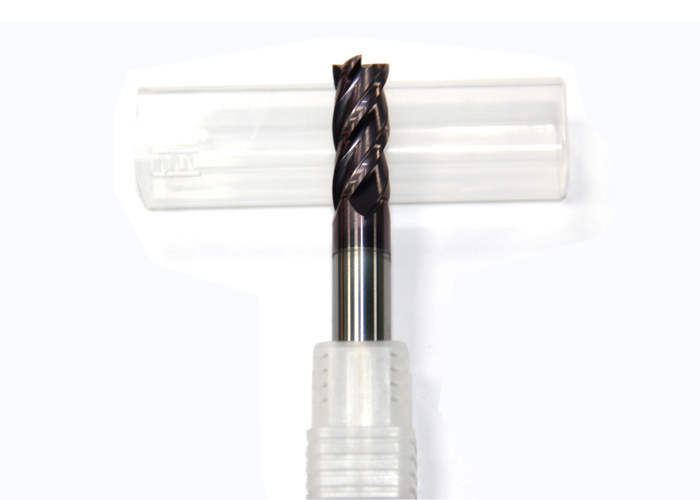

    1 Inch 2 Inch Corner Radius End Mill Cutter Tool General Processing

    Ask Lasest Price
    Model Number : E550 MAX
    Brand Name : KTC
    Certification : CCC
    Price : Negotiation
    Delivery Time : 1-35days
    Payment Terms : T/T, L/C,Paypal...
    Supply Ability : 10000pcs/week
    • Product Details
    • Company Profile

    1 Inch 2 Inch Corner Radius End Mill Cutter Tool General Processing

    1 Inch 2 Inch Corner Radius End Mill Cutter Tool General Processing


    Features


    Reduced straight shank allows any chucking depth
    Solid carbide construction for maximum rigidity
    Long length design for deep cavity machining
    Corner radius for improved strength
    4 flutes
    Solid carbide

    Specifications:

    E550MAX general processing milling cutter series adopt domestic high-quality fine grain tungsten steel material. Flexural strength: 4100mpa, grain size: 0.6 μm, with TiAlN-nano coating imported from Switzerland. The cutter is designed with special angle, especially suitable for carbon steel, alloy steel, pre-hardened steel and other materials processing.With high precision quality control, and full inspection, all E550MAX series end mills are delivered with 100% qualification rate.


    Raw MaterialWF25 / K40
    WC88%
    Co12%
    TRS>4100N/mm2
    Hardness>92HRA
    A.O.L50mm-150mm
    Grain size0.6 μm
    UptoHRC58
    Flutes No4F
    CoatingTiAlN-nano
    Suitable forSteel,stainless steel,nickel alloy,Titanium alloy,cast iron,plastic and other materials

    Coating:

    ItemTiAlN-nano
    Hardness(HV):2800
    Thickness(μm):2.5-3
    Oxidation Temp(°):800
    frictional Coefficient:0.3
    Color:Violet

    Standard Sizes

    SizeFlute Length of End Mills(mm)
    Flat endBall NoseRound nose
    D1*D4*50323
    D1.5*D4*50434
    D2*D4*50545
    D2.5*D4*50656
    D3*D4*50868
    D3*D3*50868
    D3.5*D4*50979
    D4*D4*5010810
    D1*D6*50323
    D1.5*D6*50434
    D2*D6*50545
    D2.5*D6*50656
    D3*D6*50868
    D3.5*D6*50979
    D4*D6*5010810
    D6*D6*50131013
    D6*D6*50151215
    D7*D8*60171417
    D8*D8*60201620
    D10*75252025
    D12*75302430
    D14*100452835
    D16*100453240
    D18*100453640
    D20*100454040

    Flute Length of Extended End Mills(mm)


    D3*D4*7512612
    D4*D4*7516814
    D5*D6*75181015
    D6*D6*75241220
    D8*75251625
    D3*D4*10012615
    D4*D4*10020815
    D5*D6*100201020
    D6*D6*100301225
    D8*D8*100351630
    D10*100402030
    D12*100452435
    D6*D6*150451240
    D8*D8*150501645
    D10*150552050
    D12*150552455
    D14*150602860
    D16*150703265
    D18*150703670
    D20*150704070
