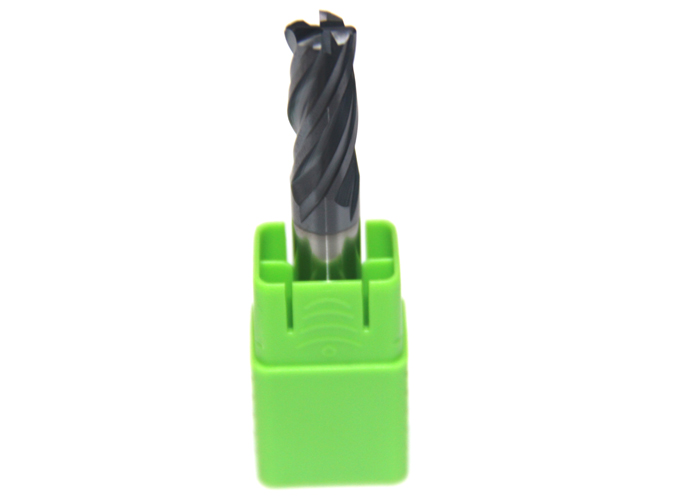

    Tungsten Carbide Radius Cutter End Mill High Performance AlTiN Or TiSiN Coating

    Ask Lasest Price
    Model Number : E600
    Brand Name : KTC
    Certification : CCC
    Price : Negotiation
    Delivery Time : 1-35days
    Payment Terms : T/T, L/C,Paypal...
    Supply Ability : 10000pcs/week
    • Product Details
    • Company Profile

    Tungsten Carbide Radius Cutter End Mill High Performance AlTiN Or TiSiN Coating

    Tungsten Carbide Radius Cutter End Mill High Performance AlTiN Or TiSiN Coating


    End mill flutes
    Flutes are the easiest part of the end mill to recognize. These are the deep spiraled grooves in the tool that allow for chip formation and evacuation. Simply put, flutes are the part of the anatomy that allows the end mill to cut on its edge.
    One consideration that must be made during tool selection is flute count, something we have previously covered in depth. Generally, the lower the flute count, the larger the flute valley – the empty space between cutting edges. This void affects tool strength, but also allows for larger chips with heavier depths of cut, ideal for soft or gummy materials like aluminum. When machining harder materials such as steel, tool strength becomes a larger factor, and higher flute counts are often utilized.

    Specifications


    MaterialGU25UF
    WC88%
    Co12%
    TRS>4300N/mm2
    Hardness>92HRA
    A.O.L50mm-150mm
    Grain size0.4μm
    UptoHRC60
    Flutes No4 Flutes
    CoatingAlTiN or TiSiN
    Suitable forSteel,stainless steel,nickel alloy,Titanuim alloy,cast iron,plastic and other materials

    Coating:

    ItemAlTiNTiSiN
    Hardness(HV):32003600
    Thickness(μm):2.5-33
    Oxidation Temp(°):9001000
    frictional Coefficient:0.30.45
    Color:BlackCopper

    Standard Sizes

    SizeFlute Length of End Mills(mm)
    Flat endBall NoseRound nose
    D1*D4*50323
    D1.5*D4*50434
    D2*D4*50545
    D2.5*D4*50656
    D3*D4*50868
    D3*D3*50868
    D3.5*D4*50979
    D4*D4*5010810
    D1*D6*50323
    D1.5*D6*50434
    D2*D6*50545
    D2.5*D6*50656
    D3*D6*50868
    D3.5*D6*50979
    D4*D6*5010810
    D6*D6*50131013
    D6*D6*50151215
    D7*D8*60171417
    D8*D8*60201620
    D10*75252025
    D12*75302430
    D14*100452835
    D16*100453240
    D18*100453640
    D20*100454040

    Flute Length of Extended End Mills(mm)


    D3*D4*7512612
    D4*D4*7516814
    D5*D6*75181015
    D6*D6*75241220
    D8*75251625
    D3*D4*10012615
    D4*D4*10020815
    D5*D6*100201020
    D6*D6*100301225
    D8*D8*100351630
    D10*100402030
    D12*100452435
    D6*D6*150451240
    D8*D8*150501645
    D10*150552050
    D12*150552455
    D14*150602860
    D16*150703265
    D18*150703670
    D20*150704070

    FAQ


    Q: Are you manufacturer or trading company?


    A: We are a professional manufacturer almost 10 years.


    Q: What is your advantage?


    A: Always prioritizes high quality and competitive price;


    Good technology support is a strong backing for our products;


    We support you with good service, payment terms, lead time and logistics control.
