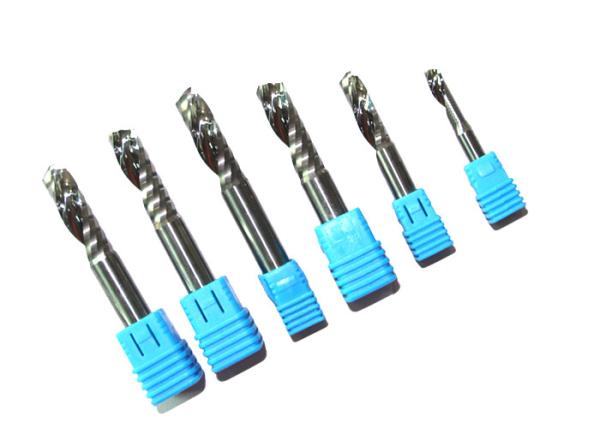

    Solid Carbide Single Flute End Mill / One Flute Milling End Mill Cutter

    Ask Lasest Price
    Model Number : SF600
    Brand Name : KTC
    Certification : CCC
    Price : Negotiation
    Delivery Time : 1-35days
    Payment Terms : T/T, L/C,Paypal...
    Supply Ability : 10000pcs/week
    • Product Details
    • Company Profile

    Solid Carbide Single Flute End Mill / One Flute Milling End Mill Cutter

    Solid Carbide Single Flute End Mill / One Flute Milling End Mill Cutter


    KTC Single Flute End Mill


    Cutting tools come in a range of sizes, materials, and geometry types.
    It is generally more efficient to use a combination of different toolpaths and tools to achieve a detailed model rather than assuming that a small tool with a smaller stepover is the only way. Often, a larger tool can achieve better finish results.
    In end milling, the cutter generally rotates on an axis vertical to the workpiece. Cutting teeth are located on both the end face of the cutter and the periphery of the cutter body.
    A ball nose end mill, also known as a spherical end mill or ball end mill, has a semisphere at the tool end. Ball nose end mills are used on workpieces with complex surfaces.
    Choosing flat end mill vs. a ball end mill will determine the characteristics of the tooling marks (or lack thereof) on your model. Most jobs will benefit from strategic use of multiple size and shape tools for milling different features. End Mills are often used for roughing and 2D cutting and V-Bit and Ball Nose cutters are often used for finishing operations.

    Specifications:

    SF600 Single flute tungsten steel milling cutter adopts domestic high-quality tungsten steel material, bending strength: 3900mpa, particle size: 0.8μm. The cutter adopts special angle design and strict quality control with 100% of self inspection rate and more than 96% of qualified rate. It can be used for ultra deep milling of materials with high speed. The large-scale chip removal groove can ensure the best chip removal effect. Especially suitable for wood, copper, aluminum and other non-ferrous metals.


    MaterialYL10.2 / K30
    WC90%
    Co10%
    TRS>3900N/mm2
    Hardness>91.5HRA
    A.O.L38.5mm-100mm
    Grain size0.8μm
    UptoHRC55
    Flutes No1 Flute
    Suitable forwood, copper, aluminum, plastic and other materials

    Single Flute End Mill Standard Sizes


    No.NameEdge Dia(mm)Flute Length(mm)Shank dia(mm)Overall Length(mm)
    1Right Hand Helix0.41,1.5,23.17538.5
    20.51.5,2,2.5,33.17538.5
    30.61.5,2,3.0,3.53.17538.5
    40.82 3 4.53.17538.5
    51.01,1.2,3,4,5,6,73.17538.5
    61.53,4 ,6, 8 ,10, 123.17538.5
    72.03,4, 6,8,10,12,173.17538.5
    82.0223.17545
    92.53,4,6,8,10,12,173.17538.5
    102.521,223.17545
    113.04,6,8,10,12,153.17538.5
    123.1756,8,10,12,15,173.17538.5
    133.175223.17545
    143.17525,263.17550
    153.175323.17555
    163.175353.17560
    173.175423.17570
    1844,6,8,12,15445
    19417,22445
    20425450
    21428455
    22432455
    23435460
    24442470
    25517,22,25560
    26612,15,17,22,25650
    27628655
    28632655
    29635660
    30642670
    31652675
    326626100
    33817,22,25860
    34828860
    35832865
    36837865
    37842875
    388528100
    3910251075
    4010301075
    4110351075
    4210421075
    43105210100
    44106210100
    4512251275
    4612301275
    4712351275
    4812421275
    49125212100

    No.NameEdge Dia(mm)Flute Length(mm)Shank dia(mm)Overall Length(mm)
    1Left Hand Helix0.40.5,1.2,1.5,23.17538.5
    20.51.1,1.5,23.17538.5
    30.61.5,2,33.17538.5
    40.81.5,2,3,43.17538.5
    51.01,1.5,2,3,4,53.17538.5
    61.51.5,2,3,4,5,63.17538.5
    72.03,4, 6,8,10,12,173.17538.5
    82.53,4,6,8,12,163.17538.5
    93.04,6,8,123.17538.5
    103.1758,10,12,15,173.17538.5
    113.175223.17545
    123.175253.17550
    13412,15,17445
    14422445
    15425450
    16420460
    17430460
    18517,22,25560
    19612,15,17,22,25650
    20628655
    21632655
