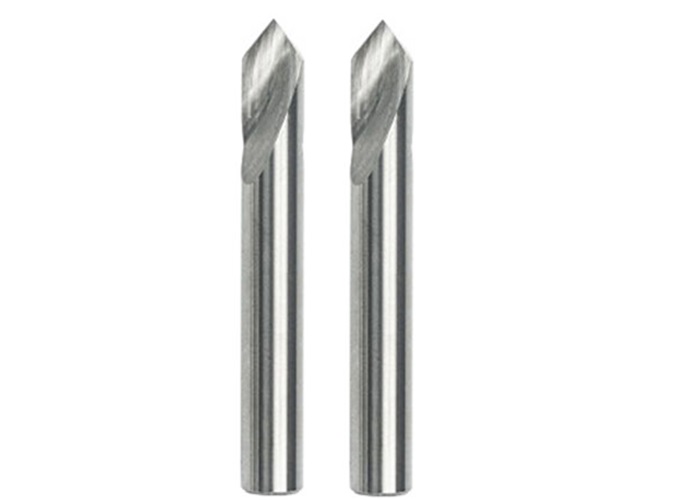

    Chamfer End Mill Cutter Solid Carbide Center Cutting End Mill CNC Cutting Tools Factory

    Ask Lasest Price
    Model Number : D320
    Brand Name : KTC
    Certification : CCC
    Price : Negotiation
    Delivery Time : 1-35days
    Payment Terms : T/T, L/C,Paypal...
    Supply Ability : 10000pcs/week
    • Product Details
    • Company Profile

    Chamfer End Mill Cutter Solid Carbide Center Cutting End Mill CNC Cutting Tools Factory

    Chamfer End Mill Cutter Solid Carbide Center Cutting End Mill CNC Cutting Tools Factory


    Specifications


    D320 centering chamfer cutter series adopt domestic high-quality fine grain tungsten steel material, flexural strength: 4100mpa, grain size: 0.8μm. There are two categories for aluminum and steel respectively. The centering chamfer cutter for steel is coated by imported coating equipment (black / Bronze), especially suitable for aluminum, copper, ordinary medium and low carbon steel, alloy steel and other materials processing. With high precision quality control, and full inspection, all D320 series end mills are delivered with 100% qualification rate.


    Raw MaterialYL10.2 /K30
    WC90%
    Co10%
    TRS>4100N/mm2
    Hardness>92HRA
    A.O.L50mm-100mm
    Grain size0.8 μm
    UptoHRC55
    Flutes No2F
    Suitable forAluminum,plastic and other materials

    Standard Sizes

    SizeFlute Length(mm)the Degrees of Angle
    D4*50860° 90° 120°
    D4*100860° 90° 120°
    D6*501260° 90° 120°
    D6*1001260° 90° 120°
    D8*601660° 90° 120°
    D8*1001660° 90° 120°
    D10*752060° 90° 120°
    D10*1002060° 90° 120°
    D12*752460° 90° 120°
    D12*1002460° 90° 120°
    D16*1003260° 90° 120°
    D20*1004060° 90° 120°

    Product Name

    Chamfer End Mill Cutter Solid Carbide Center Cutting End Mill CNC Cutting Tools Factory

    Material

    Tungsteen Carbide

    Flute

    4

    Diameter

    1~20mm

    Flute length

    1.5~75mm

    Overall length

    38~150mm

    Shank length

    4~20mm

    Coating

    no

    HRC

    45,55,60,65

    Helix angle

    30°,35°,40°,45°,55°

    Suitable for

    Wood,Plastic,Acrycle,Composite Material,Copper,Cast Iron,Carbon Steel,Alloy Steel,HSS,Stainless Steel,Mould Steel,Titanium

    Application

    Side Milling, Slotting,Forming

    Advantage

    Wear resistance,high strength,good toughness,long tool life


    We are a professional manufacturer of carbide cutting tools, who specializes in designing and producing carbide end mills, drills,reamers,tapers and non-standard cutting tools. Our products are widely used for machining wood, plastic, composite material, graphite, aluminum, copper, titanium, cast iron,heat-resistant steel,alloyed steel, stainless steel,hardened steel etc. With professional machines (,Anca, Deckel,Zoller ),high-quality raw materials and skilled workers, we supply high quality products and cooperate with many foreign customers.
