    Plastic Cutting End Mills AlTiN Or TiSiN Coating 100% Self Inspection Rate

    Ask Lasest Price
    Model Number : Coated Thread Mill Cutter
    Brand Name : KTC
    Certification : CCC
    Price : Negotiation
    Delivery Time : 1-35days
    Payment Terms : T/T, L/C,Paypal...
    Supply Ability : 10000pcs/week
    • Product Details
    • Company Profile

    Plastic Cutting End Mills AlTiN Or TiSiN Coating 100% Self Inspection Rate

    Plastic Cutting End Mills AlTiN Or TiSiN Coating 100% Self Inspection Rate

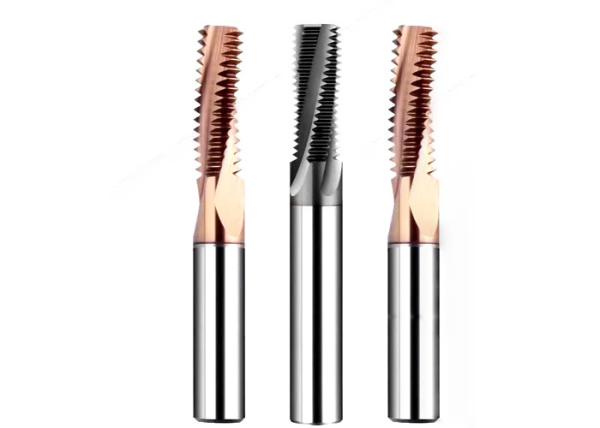

    KTC Thread Mill Cutter


    Tapping may be the most common method for putting threads into a hole, but it is not always the best method. Difficult to cut materials, small hole sizes, or threading close to the bottom of a blind hole can push the limits of tap capabilities. An alternative way to create threads and overcome these hurdles is through the use of a thread milling cutter. all-carbide thread milling cutters can be made to order to suit specific customer applications by adjusting the cutter diameter, neck length, and number of threads.


    Specifications


    The tungsten steel thread milling cutter is made of high-quality ultrafine tungsten steel material at home and abroad, with bending strength of 4300mpa, particle size of 0.4μm and coating of AlTiN or TiSiN. The coating adopts AlTiN or TiSiN imported from Switzerland. High precision quality control, self inspection rate is 100%, qualified rate is 100%. With this kind of tool, the cutting in thread milling of M1.0 and above can be completed in an instant. Innovative thread milling cutter: core hole drilling and thread milling can be completed in one working step with only one cutter. Especially, thread milling cutter is suitable for copper, aluminum, medium and high carbon steel, die steel, pre-hardened steel and other material hole processing.


    Raw MaterialGU25UF
    WC88%
    Co12%
    TRS>4300N/mm2
    Hardness>92HRA
    A.O.L50mm-90mm
    Grain size0.4 μm
    UptoHRC60
    Flutes No3/4F
    CoatingAlTiN or TiSiN
    Suitable forcopper, aluminum, medium and high carbon steel, die steel, pre-hardened steel and other material hole processing

    Coating:

    ItemAlTiNTiSiN
    Hardness(HV)32003600
    Thickness(UM)2.5-33
    Oxidation temp(°)9001000
    Friction coeffient0.30.45
    ColorBlackCopper

    Standard Sizes

    UN 60° Inner Thread Mill Cutter for Aluminum
    Pitch (TPI)UNCUNFUNEFShank Dia.Edge Dia.No. of FlutesFlute LengthOverall LengthBottom Hole Dia.
    36No.8-364338.5503.5
    32No.10-32No.12-3/8-3243.5311.1504
    28No.12-28,1/4-287/16,1/2-2844311.8504.6
    281/4-287/16,1/2-2865312.7575.5
    287/16,1/2-28109.2422.77510.2
    24No.10-245/16,3/8-249/16,11/16-2443.2310.6503.8
    24No.12-245/16,3/8-249/16,11/16-2444311.6504.5
    245/16,3/8-249/16,11/16-2466315.9576.8
    243/8-249/16,11/16-2487.8319.1608.5
    249/16,11/16-241211.9428.67513.2
    201/4-207/16,1/2-203/4,1-2044312.7505.2
    207/16,1/2-203/4,1-20109422.9759.8
    201/2-203/4,1-201010425.47511.5
    203/4,1-201212438.17517.8
    185/16-189/1611/16,1-11/16-1865.8316.9576.5
    189/16,5/8-1811/16,1-11/16-181010429.67512.8
    163/8-163/4-1687.6319.1608
    163/4-1612124287517.5
    147/16-147/8-1488320609.3
    147/8-141616439.99020.5
    131/2-13883206010.8
    129/16-121"1-1/2-1210104287512.3
    121"1-1/2-1216164409023.5
    115/8-1112124307513.5
    103/4-1012124307516.5
    97/8-916164389019.5
    81-816164409022

    UN 60° Outer Thread Mill Cutter for Aluminum
    Pitch (TPI)UNCUNFShank Dia.Edge Dia.No. of FlutesFlute LengthOverall Length
    32No.8-3266311.9150
    28No.12-2866312.750
    24No.12-2466312.750
    201/4-2066315.450
    185/16-1888316.9360
    163/8-1688319.0560
    129/16-121212429.675

    M ISO Standard 60°Inner Thread Mill Cutter for Steel
    Pitch (mm)M Coarse ThreadM Fine ThreadShank Dia.Edge Dia.No. of FlutesFlute LengthOverall LengthBottom Hole Dia.
    0.5M3*0.542.336502.5
    0.5M6*0.544310505.5
    0.5M8-M12*0.566313507.5
    0.6M3.5*0.642.737502.9
    0.7M4*0.74338503.3
    0.75M4.5*0.7543.439503.75
    0.75M10-M12*0.7588320509.25
    0.8M5*0.844310504.2
    1M6*1.064.8312575.0
    1M8*1.066316577.0
    1M10*1.088320609.0
    1M12*1.010104227511.0
    1M16*1.012124227515.0
    1M20-M48*1.016164309019.0
    1.25M8*1.2566316576.75
    1.25M12-M14*1.2510104257510.75
    1.5M10*1.588320608.5
    1.5M12-M20*1.510104287510.5
    1.5M14-M24*1.512124287512.5
    1.5M20-M48*1.516164309018.5
    1.75M12*1.75109.84307510.25
    2M14*2.0M15-M16*2.010104307512.0
    2M16*2.0M17-M20*2.012124307514.0
    2M20-M80*2.016164409018.0
    2.5M18-M20*2.514144368515.5
    2.5M20-M80*2.516164409017.5
    3M24*3.016164429021.0
    0.75M6*0.7564.8312605.25
    0.75M8*0.7566316607.25
    1.25M10*1.2588320608.75

    M ISO Standard 60°Outer Thread Mill Cutter for Steel
    Pitch (mm)M Coarse ThreadShank Dia.Edge Dia.No. of FlutesFlute LengthOverall Length
    0.5M3*0.5443650
    0.7M4*0.7443850
    0.75M4.5*0.75443950
    0.8M5*0.84431050
    1M6*1.06631357
    1.25M8*1.256631657
    1.5M10*1.58832060
    1.75M12*1.75101042875
    2M14*2.0101043075
    2.5M18*2.5141443685
    3M24*3.0161644090
