    Tungsten Carbide Saw Cutting Blade Type High Hardness Gu25UF Raw Material

    Ask Lasest Price
    Model Number : Tungsten steel saw blade
    Brand Name : KTC
    Certification : CCC
    Price : Negotiation
    Delivery Time : 1-35days
    Payment Terms : T/T, L/C,Paypal...
    Supply Ability : 10000pcs/week
    • Product Details
    • Company Profile

    Tungsten Carbide Saw Cutting Blade Type High Hardness Gu25UF Raw Material

    Tungsten Carbide Saw Cutting Blade Type High Hardness Gu25UF Raw Material

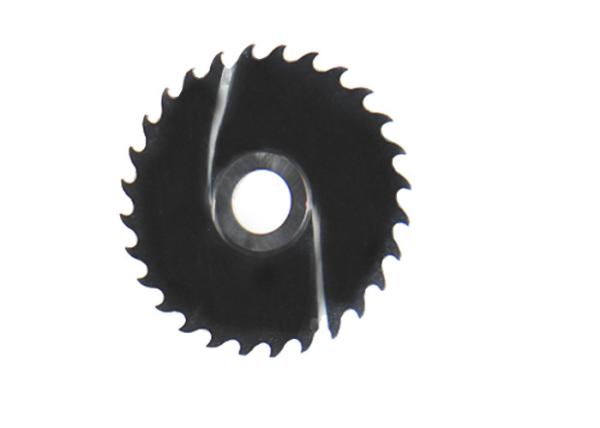

    KTC Tungsten steel saw blade


    Tungsten Carbide Bladestungsten carbide circular saw blades
    All of our blades are up to 4” in diameter and are compatible with high-speed air or electric portable saws and grinders. We have four different types of circular saw blades for different cutting needs:
    General Purpose: Ideal for all-around cutting of composite materials.
    Heavy Duty:Wider band of tungsten carbide grit on each side of cutting edge makes this a great blade for extremely hard and/or thick materials.
    Slim Trim:Reduce kerf width by two-thirds and leave a finer edge finish with this blade. A medium grit is brazed to the outside diameter for fast cutting action. Tunco then applies 80-grit on each blade side. Highly recommended for cutting thin materials.

    Specifications


    MaterialGu25UF
    WC88%
    Co12%
    TRS>4300N/mm2
    Hardness>92HRA
    Grain size0.4μm
    UptoHRC60
    Suitable foralloy structural steel, carburized steel, high speed steel, spring steel and other hard alloy materials, , aluminum materials and other materials

    Standard Sizes


    Outer Dia*Thickness(mm)
    D12*0.2-D12*4D65*0.5-D65*6
    D13*0.2-D13*4D70*0.2-D70*6.5
    D16*0.2-D16*5D75*0.2-D75*6.5
    D20*0.2-D20*4D80*0.2-D80*6
    D22*0.2-D22*5D85*0.2-D85*6.5
    D25*0.2-25*5D90*0.3-D90*6
    D32*0.2-D32*5D100*0.3-D100*6
    D35*0.2-D35*5.5D110*0.3-D110*6.5
    D40*0.2-D40*5D115*0.3-D115*5.5
    D50*0.2-D50*5.5D120*0.3-D120*6
    D55*0.2-D55*5D125*0.3-D125*8
    D60*0.2-D60*6D130*0.5-D130*5.5
    D63*0.2-D63*6D150*0.5-D150*4.5
