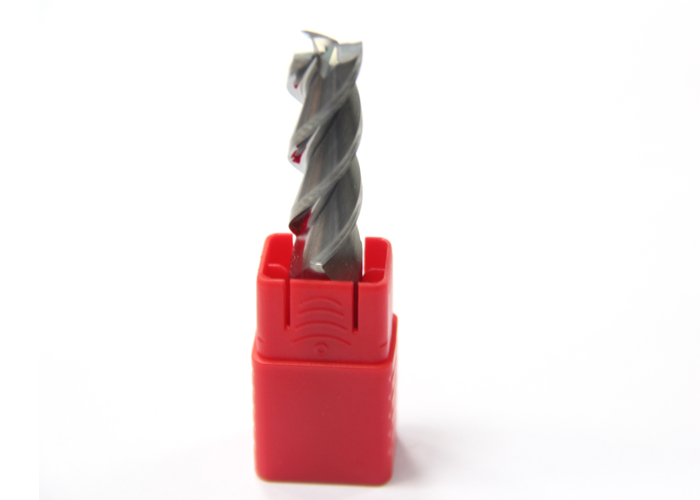

3 Blade Aluminum End Mills / 1 Inch 2 Inch Diameter End Mill
Cutters
Specifications:
A380 high gloss aluminum milling cutter series adopt domestic
high-quality fine grain tungsten steel material, flexural strength:
4100mpa, grain size: 0.8 μm, not easy to break the edge. A new
special aluminum milling cutter with color coating is introduced,
which increases the wear resistance of the cutter. The unique
groove design and the polishing treatment of the front cutting edge
and groove are adopted to increase the cutting performance. It is
especially suitable for efficient and high gloss machining of
aluminum alloy (6 and 7 series aluminum) materials. With high
precision quality control, and full inspection, all A380 series end
mills are delivered with 100% qualification rate.
| Raw Material | K30 / YL10.2 |
| TRS | >4100N/mm2 |
| Hardness | >91HRA |
| A.O.L | 50mm-150mm |
| Grain size | 0.8 μm |
| Upto | HRC50 |
| Flutes No | 3F |
| Suitable for | Aluminum,plastic and other materials |
Standard Sizes
| Size | Flute Length of End Mills(mm) |
| Aluminum Use |
| D1*D4*50 | 3 |
| D1.5*D4*50 | 5 |
| D2*D4*50 | 6 |
| D2.5*D4*50 | 8 |
| D3*D4*50 | 9 |
| D3*D3*50 | 9 |
| D3.5*D4*50 | 11 |
| D4*D4*50 | 12 |
| D1*D6*50 | 3 |
| D1.5*D6*50 | 5 |
| D2*D6*50 | 6 |
| D2.5*D6*50 | 8 |
| D3*D6*50 | 9 |
| D3.5*D6*50 | 11 |
| D4*D6*50 | 12 |
| D6*D6*50 | 15 |
| D6*D6*50 | 18 |
| D7*D8*60 | 20 |
| D8*D8*60 | 24 |
| D10*75 | 30 |
| D12*75 | 35 |
| D14*100 | 45 |
| D16*100 | 45 |
| D18*100 | 45 |
| D20*100 | 45 |
| Flute Length of Extended End Mills(mm) |
| D3*D4*75 | 12 |
| D4*D4*75 | 16 |
| D5*D6*75 | 18 |
| D6*D6*75 | 25 |
| D8*75 | 30 |
| D3*D4*100 | 15 |
| D4*D4*100 | 20 |
| D5*D6*100 | 30 |
| D6*D6*100 | 30 |
| D8*D8*100 | 35 |
| D10*100 | 40 |
| D12*100 | 45 |
| D6*D6*150 | 40 |
| D8*D8*150 | 50 |
| D10*150 | 55 |
| D12*150 | 55 |
| D14*150 | 60 |
| D16*150 | 70 |
| D18*150 | 70 |
| D20*150 | 70 |
HISTORY
XINPENG TOOLS is established from 2003, with near 20 years'
experience in designing and manufacturing solid carbide end mill
cutters and other cutting tools, like CNC insert,thread Mill
Cutter, tungsten saw blade, we offer Customized Milling Tools also.
On 16th, June 2003, CHANGZHOU XINPENG TOOLS MANUFACTURING CO.,LTD
was formally registered and established.
In October 2003, A professional R&D team was set up to develop
new product projects, laying a solid foundation for future
development.
In 2005 3 AXIS CNC grinders were imported from Taiwan.
In 2007, XINPENG TOOLS expanded the factory scale from 1000 square
meters to 5000 square meters.
In 2009, Zoller Inspection machine was imported from Germany.
In 2011, Dongguan Branch was established to deal with after-sales
problems for customers in South China.
In 2012, more high-precision CNC grinding machines and other
world-class processing equipment were imported From Germany.
In 2013,tool measuring instruments, fine-tuning instruments,OD run
out instruments and other tool detection equipment were imported.
In 2014, The production department continued to increase the number
of machines, including grinders and DMG laser machines imported
from Germany, and the production capacity of the products reached a
new level.
In 2015, The company established the ministry of foreign trade,
which is mainly responsible for the foreign market, to increase our
company's competition in the same industry abroad.
In 2016, KTC branch was registered and established.
In 2017, We purchased German saacke five-axis CNC machines and
haller CNC machines.
In 2019,We invited foreign experts to guide our work and provide
theoretical learning for our engineers.
SERVICE
With strong strength, sufficient inventory, reasonable price and
excellent service, our company has established a long-term
cooperative relationship with many enterprises and peers.
