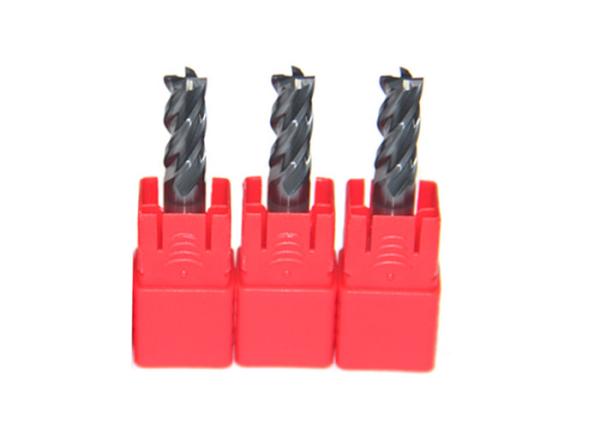

    AlTiN or TiSiN Coating Spiral Carbide End Mill Cutter / Black Solid Carbide Milling Cutters

    Ask Lasest Price
    Model Number : E550
    Brand Name : KTC
    Certification : CCC
    Price : Negotiation
    Delivery Time : 1-35days
    Payment Terms : T/T, L/C,Paypal...
    Supply Ability : 10000pcs/week
    • Product Details
    • Company Profile

    AlTiN or TiSiN Coating Spiral Carbide End Mill Cutter / Black Solid Carbide Milling Cutters

    AlTiN or TiSiN Coating Spiral Carbide End Mill Cutter / Black Solid Carbide Milling Cutters


    Coatings
    Carbide cutters may be further coated with ceramics such as titanium aluminum nitride (TiAlN, aka AlTiN), titanium nitride (TiN), titanium carbon nitride (TiCN), and so on. Of these, the bluish-gray TiAlN coating is most common one, and by the virtue of reducing friction and improving hardness, it boosts the speed of metal cutting by up to 20%. It extends tool life.

    Specifications


    E550 general processing milling cutter series adopt domestic high-quality fine grain tungsten steel material. Flexural strength: 3900mpa, grain size: 0.8μm, with coating (black / Bronze) by imported coating equipment. E550 milling cutters are with special angle design and strict quality control, which is especially suitable for ordinary medium and low carbon steel, alloy steel and other materials processing. With high precision quality control, and full inspection, all E550 series end mills are delivered with 100% qualification rate.


    Raw MaterialYL10.2 / K30
    WC90%
    Co10%
    TRS>3900N/mm2
    Hardness>91.5HRA
    A.O.L50mm-150mm
    Grain size0.8 μm
    UptoHRC55
    Flutes No4F
    CoatingAlTiN or TiSiN
    Suitable forSteel,stainless steel,nickel alloy,Titanium alloy,cast iron, plastic and other materials

    Coating:


    ItemAlTiNTiSiN
    Hardness(HV):32003600
    Thickness(μm):2.5-33
    Oxidation Temp(°):9001000
    frictional Coefficient:0.30.45
    Color:BlackCopper

    Standard Sizes


    SizeFlute Length of End Mills(mm)
    Flat endBall NoseRound nose
    D1*D4*50323
    D1.5*D4*50434
    D2*D4*50545
    D2.5*D4*50656
    D3*D4*50868
    D3*D3*50868
    D3.5*D4*50979
    D4*D4*5010810
    D1*D6*50323
    D1.5*D6*50434
    D2*D6*50545
    D2.5*D6*50656
    D3*D6*50868
    D3.5*D6*50979
    D4*D6*5010810
    D6*D6*50131013
    D6*D6*50151215
    D7*D8*60171417
    D8*D8*60201620
    D10*75252025
    D12*75302430
    D14*100452835
    D16*100453240
    D18*100453640
    D20*100454040
    Flute Length of Extended End Mills(mm)
    D3*D4*7512612
    D4*D4*7516814
    D5*D6*75181015
    D6*D6*75241220
    D8*75251625
    D3*D4*10012615
    D4*D4*10020815
    D5*D6*100201020
    D6*D6*100301225
    D8*D8*100351630
    D10*100402030
    D12*100452435
    D6*D6*150451240
    D8*D8*150501645
    D10*150552050
    D12*150552455
    D14*150602860
    D16*150703265
    D18*150703670
    D20*150704070
