Solid Carbide Milling Cutters GU25UF Raw Material High Performance

Ask Lasest Price
Model Number :	E600
Brand Name :	KTC
Certification :	CCC
Price :	Negotiation
Delivery Time :	1-35days
Payment Terms :	T/T, L/C,Paypal...
Supply Ability :	10000pcs/week

Add to Cart

Product Details
Company Profile

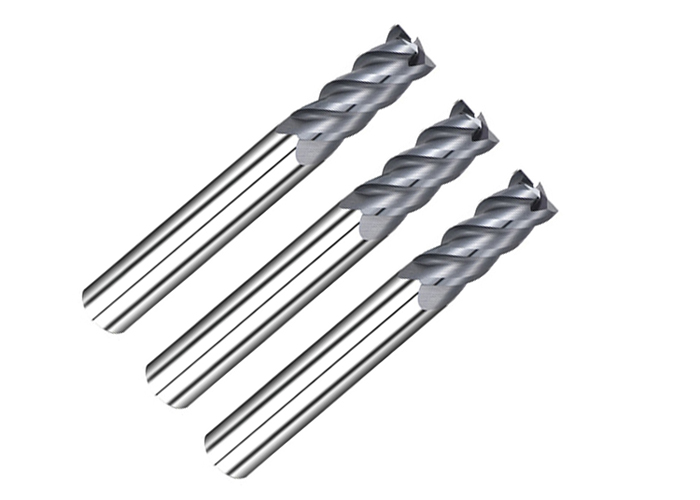

Solid Carbide Milling Cutters GU25UF Raw Material High Performance

Solid Carbide Milling Cutters GU25UF Raw Material High Performance

Specifications

E600 high performance milling cutter series is made of domestic well-known high-quality fine grain tungsten steel material, with flexural strength of 4300mpa and grain size of 0.4 μm, and is coated with AlTiN or TiSiN imported from Switzerland. The cutter is designed with large helix angle, which can realize high-speed and efficient machining, especially suitable for medium and high carbon steel, die steel, pre-hardened steel and other materials processing. With high precision quality control, and full inspection, all E600 series end mills are delivered with 100% qualification rate.

Material	GU25UF
WC	88%
Co	12%
TRS	>4300N/mm2
Hardness	>92HRA
A.O.L	50mm-150mm
Grain size	0.4μm
Upto	HRC60
Flutes No	4 Flutes
Coating	AlTiN or TiSiN
Suitable for	Steel,stainless steel,nickel alloy,Titanuim alloy,cast iron,plastic and other materials

Coating:

Item	AlTiN	TiSiN
Hardness(HV):	3200	3600
Thickness(μm):	2.5-3	3
Oxidation Temp(°):	900	1000
frictional Coefficient:	0.3	0.45
Color:	Black	Copper

Standard Sizes

Size	Flute Length of End Mills(mm)
Size	Flat end	Ball Nose	Round nose
D1D450	3	2	3
D1.5D450	4	3	4
D2D450	5	4	5
D2.5D450	6	5	6
D3D450	8	6	8
D3D350	8	6	8
D3.5D450	9	7	9
D4D450	10	8	10
D1D650	3	2	3
D1.5D650	4	3	4
D2D650	5	4	5
D2.5D650	6	5	6
D3D650	8	6	8
D3.5D650	9	7	9
D4D650	10	8	10
D6D650	13	10	13
D6D650	15	12	15
D7D860	17	14	17
D8D860	20	16	20
D10*75	25	20	25
D12*75	30	24	30
D14*100	45	28	35
D16*100	45	32	40
D18*100	45	36	40
D20*100	45	40	40
Flute Length of Extended End Mills(mm)
D3D475	12	6	12
D4D475	16	8	14
D5D675	18	10	15
D6D675	24	12	20
D8*75	25	16	25
D3D4100	12	6	15
D4D4100	20	8	15
D5D6100	20	10	20
D6D6100	30	12	25
D8D8100	35	16	30
D10*100	40	20	30
D12*100	45	24	35
D6D6150	45	12	40
D8D8150	50	16	45
D10*150	55	20	50
D12*150	55	24	55
D14*150	60	28	60
D16*150	70	32	65
D18*150	70	36	70
D20*150	70	40	70

Type

A variety of grooves, slots, and pockets in the work-piece may be produced from a variety of tool bits. Common tool bit types are: square end cutters, ball end cutters, t-slot cutters, and shell mills. Square end cutters can mill square slots, pockets, and edges. Ball end cutters mill radiused slots or fillets. T-slot cutters mill exactly that: T-shaped slots. Shell end cutters are used for large flat surfaces and for angle cuts. There are variations of these tool types as well.

There are four critical angles of each cutting tool: end cutting edge angle, axial relief angle, radial relief angle, and radial rake angle.

Depending on the material being milled, and what task should be performed, different tool types and geometry may be used. For instance, when milling a material like aluminium, it may be advantageous to use a tool with very deep, polished flutes, a very sharp cutting edge and high rake angles. When machining a tough material such as stainless steel, however, shallow flutes and a squared-off cutting edge will optimize material removal and tool life.

A wide variety of materials are used to produce the cutting tools. Carbide inserts are the most common because they are good for high production milling. High speed steel is commonly used when a special tool shape is needed, not usually used for high production processes. Ceramics inserts are typically used in high speed machining with high production. Diamond inserts are typically used on products that require tight tolerances, typically consisting of high surface qualities (nonferrous or nonmetallic materials). In the early 90s, use of coatings to reduce wear and friction (among other things) became more common.
